FS16M
22,57 $
FS16M – FPV Video Transmitter.
Applications:
- FPV Drone Racing
- UAV Communication Systems
- Remote Vehicle Monitoring
- Wireless Video Transmission Systems

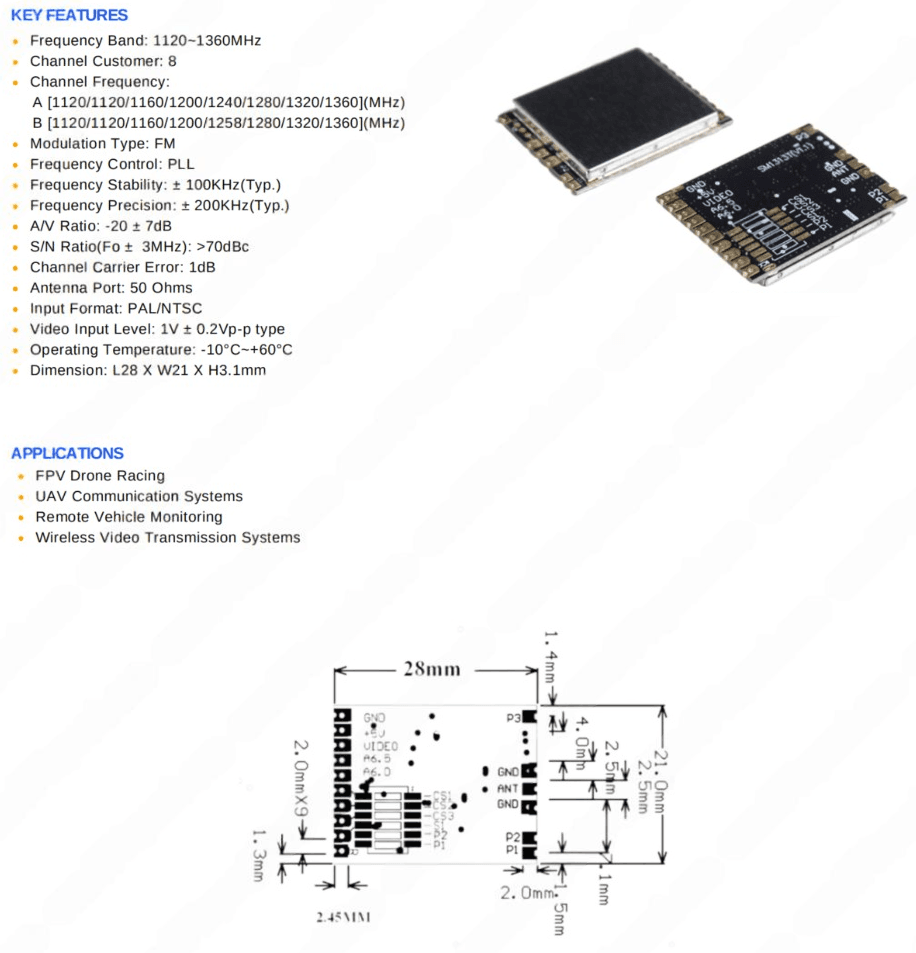

Key Features
- Frequency Band: 1120~1360MHz
- Channel Customer: 8
- Channel Frequency: A: 1120/1120/1160/1200/1240/1280/1320/1360(MHz)
- B: 1120/1120/1160/1200/1258/1280/1320/1360(MHz)
- Modulation Type: FM
- Frequency Control: PLL
- Frequency Stability: ± 100KHz(Typ.)
- Frequency Precision: ± 200KHz(Typ.)
- A/V Ratio: -20 ± 7dB
- S/N Ratio(Fo ±3MHz): >70dBc
- Channel Carrier Error: 1dB
- Antenna Port: 50 Ohms
- Input Format: PAL/NTSC
- Video Input Level: 1V ± 0.2Vp-p type
- Operating Temperature: -10°C~+60°C
- Dimension: L28 X W21 X H3.1mm
